What is Wide Dynamic Range (WDR)?

Wide Dynamic Range (WDR) is a technology widely used in imaging and video systems to improve visual clarity and detail in scenes with high contrast lighting conditions. It addresses the challenge of capturing and displaying both bright and dark areas in a scene simultaneously, which can result in loss of details or overexposure in traditional imaging systems. WDR technology allows for the preservation of details in both bright and dark areas, resulting in more balanced and accurate image reproduction.

Principle and Functionality

The fundamental principle behind Wide Dynamic Range is to combine multiple exposures of the same scene taken at different exposure levels to produce a single image or video frame that retains details from both bright and dark areas. This is achieved through a process called tone mapping or exposure fusion.

In a typical imaging system, the sensor's dynamic range—the range of brightness levels it can capture—is limited. When a scene has a wide range of brightness, such as a backlit subject or a scene with bright sunlight and deep shadows, standard imaging techniques struggle to capture details in both the brightest and darkest parts simultaneously. This can result in overexposed highlights or underexposed shadows, leading to loss of information.

WDR technology overcomes these limitations by capturing multiple images or video frames at different exposure levels. One frame is exposed to capture details in the brighter areas, while another frame is exposed to capture details in the darker areas. These frames are then fused together using sophisticated algorithms to create a final image or frame with a wider dynamic range, combining the details from both exposures.

Types of WDR Technology

Several methods and techniques are employed to achieve Wide Dynamic Range in imaging and video systems. Some of the commonly used approaches include:

1. Multi-Exposure Capture: This method involves capturing multiple frames of the same scene at different exposure levels, ranging from underexposed to overexposed. These frames are then combined using software algorithms that analyze the pixel values and merge them to create a single frame with enhanced dynamic range.
2. Digital WDR: Digital WDR is a technique where a single exposure is captured, but the sensor's sensitivity or gain is adjusted dynamically based on the brightness level of different regions within the frame. This adjustment helps to preserve details in both bright and dark areas simultaneously.
3. Local Tone Mapping: Local tone mapping techniques divide the image into smaller regions and adjust the tone mapping parameters individually for each region. This approach allows for more accurate preservation of details, as different regions may require different adjustments to maintain optimal brightness and contrast levels.
4. Wide Dynamic Range Sensors: Some imaging systems employ specialized sensors with a wider dynamic range than traditional sensors. These sensors are designed to capture a broader range of brightness levels in a single exposure, reducing the need for multiple exposures or complex algorithms.

Applications of WDR Technology

Wide Dynamic Range technology finds applications in various fields where capturing details in challenging lighting conditions is essential. Some notable applications include:

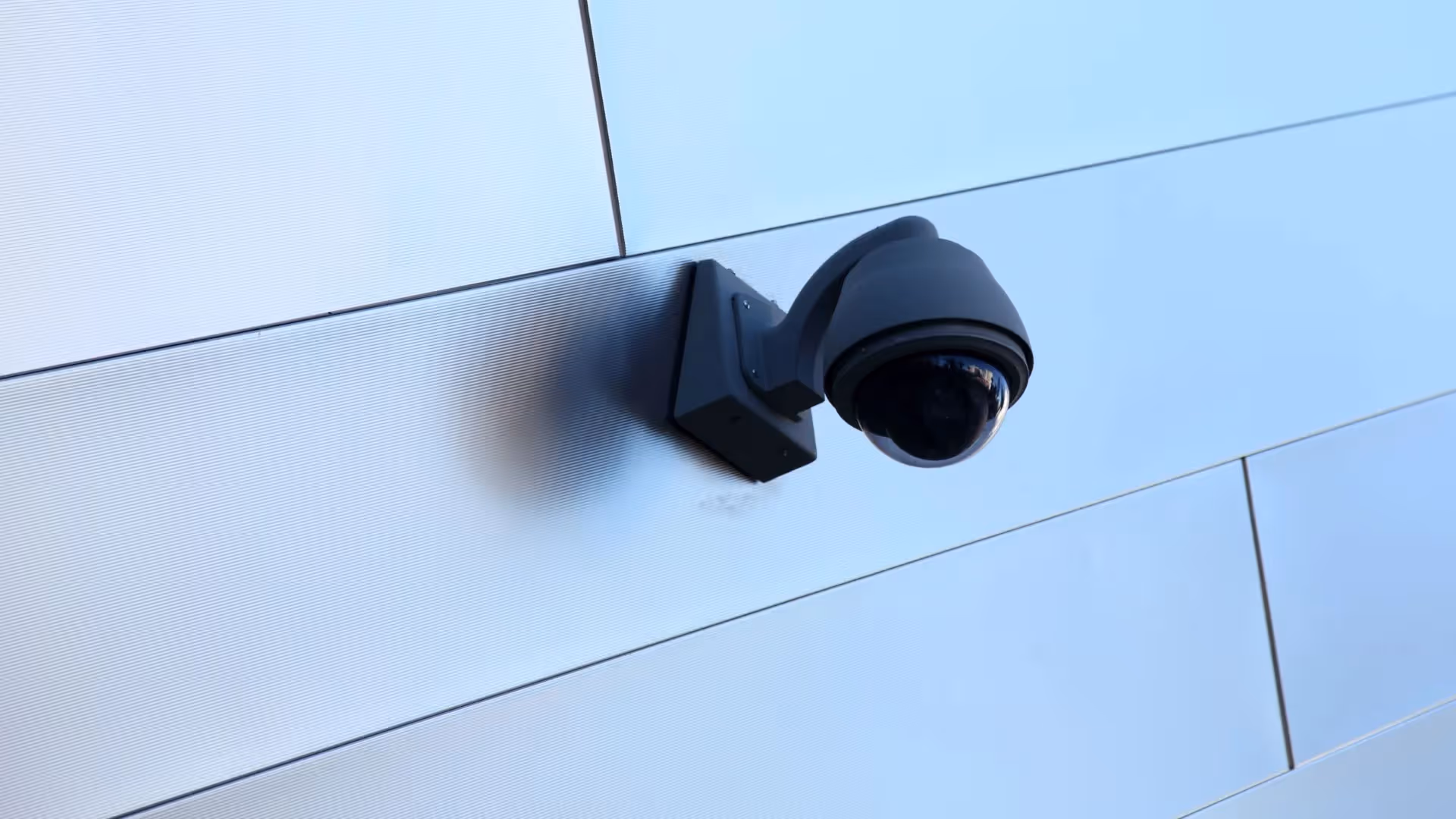

1. Surveillance and Security: WDR is particularly valuable in surveillance systems where scenes may include areas with intense backlighting, such as entrance doors or windows. By preserving details in both bright and dark areas, WDR enables clear identification of individuals and objects, enhancing overall security and surveillance effectiveness.
2. Automotive Imaging: WDR is widely employed in automotive imaging systems, such as dashboard cameras (dashcams) and advanced driver assistance systems (ADAS). It ensures clear visibility of the road and surrounding objects, even in situations with extreme contrast, such as bright headlights at night or sunlight reflecting off shiny surfaces.
3. Broadcasting and Entertainment: WDR technology is utilized in professional video production and broadcasting to capture scenes with varying lighting conditionsand maintain visual fidelity. It allows for the accurate reproduction of details in both bright and dark areas, ensuring an immersive and realistic viewing experience.
4. Industrial Inspection and Monitoring: WDR is valuable in industrial applications, such as quality control and monitoring processes. It enables the capture of clear images and videos in environments with stark contrasts, facilitating accurate inspection of products, detection of defects, and monitoring of critical operations.
5. Outdoor and Landscape Photography: WDR techniques are beneficial for outdoor photographers capturing landscapes or scenes with a wide range of lighting conditions. It helps preserve details in both the bright sky and the shadowed foreground, resulting in well-balanced and visually appealing images.

Limitations and Considerations‍

While WDR technology provides significant benefits, it is important to consider its limitations and potential challenges:

1. Artifacts and Noise: The fusion of multiple exposures or adjustments in the tone mapping process can introduce artifacts or noise in the final image or frame. These artifacts may manifest as halos around high-contrast edges or increased digital noise in the image. However, advancements in algorithms and sensor technology have mitigated these issues to a great extent.
2. Processing Requirements: Generating WDR images or video frames requires computational processing power. The fusion of multiple exposures or local tone mapping techniques can be computationally intensive, necessitating capable hardware or dedicated image processing units.
3. Motion Blur and Ghosting: If the scene being captured involves moving objects or subjects, the fusion of multiple exposures can result in motion blur or ghosting artifacts. This is because different frames may capture different positions of moving objects. Techniques such as motion compensation and frame alignment are employed to address these challenges.
4. Cost and Complexity: Implementing WDR technology in imaging or video systems may add to the cost and complexity of the equipment. Specialized sensors, advanced algorithms, and sophisticated processing units are required, making the technology more prevalent in professional or specialized applications.

Conclusion

Wide Dynamic Range (WDR) technology has revolutionized the field of imaging and video by allowing the capture and reproduction of visual details in challenging lighting conditions. Through the fusion of multiple exposures or dynamic adjustments, WDR enables the preservation of both bright and dark areas in a scene, resulting in enhanced clarity, improved visibility, and a more accurate representation of the real-world environment. With applications ranging from surveillance and automotive imaging to broadcasting and industrial inspection, WDR technology continues to advance, offering new possibilities for capturing and visualizing scenes with high contrast lighting.
